Physical shockwave therapy machine

Description

Discover the advanced Physical Shockwave Therapy Machine, designed to revolutionize rehabilitation and pain management. At Shaanxi Miaokang Medical Technology Co., Ltd., our innovative device leverages cutting-edge technology to deliver precise and effective shockwave therapy. Ideal for medical institutions and rehabilitation centers, this machine helps address a range of conditions from shoulder periarthritis to tennis elbow and plantar fasciitis.

Product Features

• Advanced Shockwave Technology: Utilizes pneumatic ballistic extracorporeal shock wave therapy to deliver targeted relief.

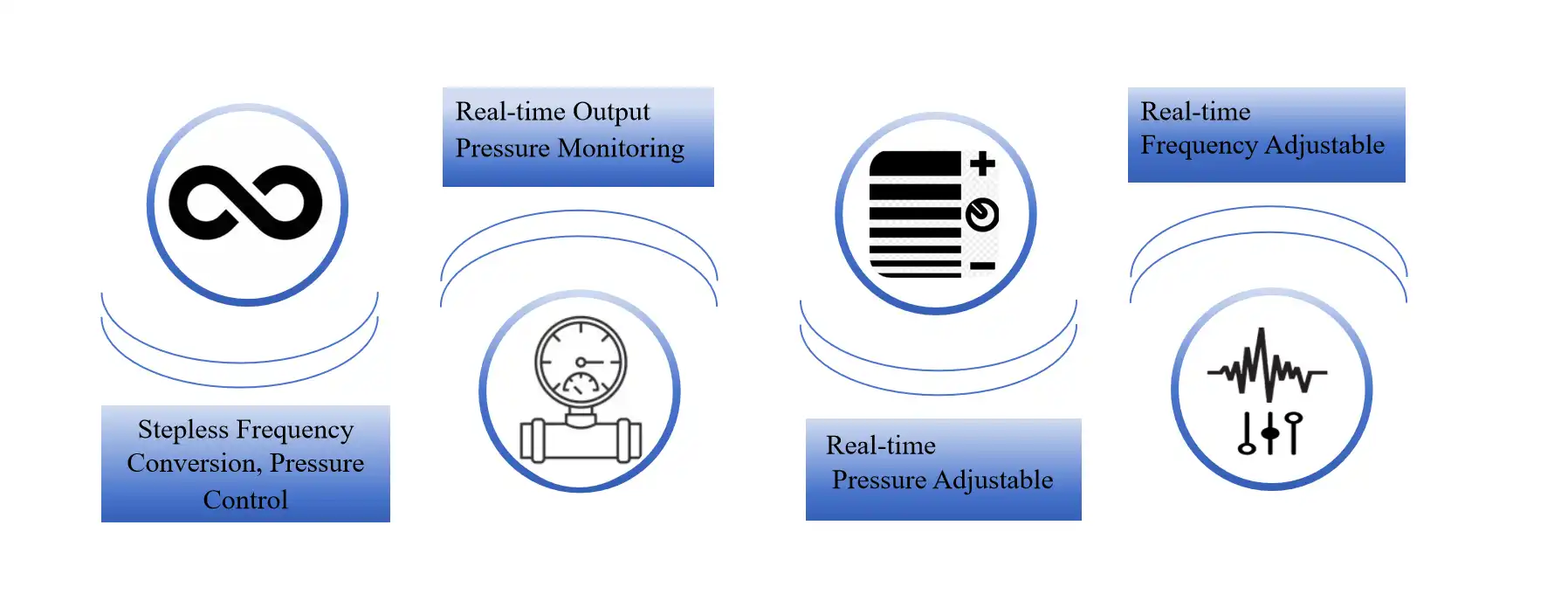

• Customizable Settings: Offers adjustable frequency, pressure, and energy density to tailor treatments to individual patient needs.
• User-Friendly Design: Can be used with or without a trolley for added flexibility in treatment settings.
• Efficient Performance: Equipped with real-time pressure and frequency monitoring for optimal treatment outcomes.

Equipment Parameters

• Electrical Safety:

  • Power Supply: AC 220V 50Hz
  • Input Power: 150W
  • Fuse: F3.15AL250V
  • Electric Shock Protection: Class I, Type B
  • Waterproofing: Not applicable
  • Operation Mode: Intermittent loading, continuous operation

• Main Performance Index:

  • Working Pressure: 150kPa~400kPa
  • Energy Density: 0mJ-0.41mJ/m²
  • Penetration Depth: 0mm~26mm
  • Operating Frequency: 1Hz~16Hz
  • Impact Times: 1000~9000 times
  • Number of Treatments: 2-5 times
  • Treatment Cycle: 2-4 days

• Operating Conditions:

  • Ambient Temperature: +10°C~+30°C
  • Relative Humidity: 30%~75%
  • Atmospheric Pressure: 700 hPa~1060 hPa
  • Power Supply: AC 220V 50Hz

• Environment of Storage:

  • Ambient Temperature: -40°C~55°C
  • Relative Humidity: ≤ 90%
  • Atmospheric Pressure: 700 hPa~1060 hPa
  • Non-corrosive gases and well-ventilated indoor

• Size and Weight:

  • Weight: 15.8kg (excluding trolley)

Working Principle

The Physical Shockwave Therapy Machine operates using pneumatic ballistic technology. The Low Power Shockwave Treatment Machine is a modern clinical gadget that saddles the force of packed air to make a coordinated and focused force. This innovation is carefully constrained by the machine's host framework, which moves a shot body inside the control handle. Once propelled, the bullet body hits a specialized treatment head, resulting in precise intensity and frequency shockwaves.

They are more than just vibrations; they are a type of mechanical tension wave that enters profoundly into the skin and hidden tissue. After arriving at the designated region, they start a mind boggling fountain of physiological reactions. The essential helpful advantages of these shockwaves are the upgrade of blood dissemination and the feeling of the body's natural fix instruments. They nourish the affected area with oxygen and nutrients, both of which are necessary for healing, by increasing blood flow. Besides, the shockwaves trigger cell reactions that speed up tissue fix, advancing the recovery of sound, utilitarian tissue.

The treatment is especially powerful for conditions, for example, plantar fasciitis, tennis elbow, and shoulder periarthritis, where confined tissue harm or aggravation hinders typical capability. The shockwaves lighten torment as well as work to determine the basic issues, prompting a rebuilding of portability and a critical improvement in the personal satisfaction for the patient.

This harmless way to deal with treatment addresses a critical progression in the field of clinical treatment, offering an easy, safe, and viable option in contrast to additional conventional techniques. It remains as a demonstration of the continuous development of clinical innovation and changing the treatment of different conditions potential.

Applications

This Physical shockwave therapy machine is designed for use in various medical and rehabilitation departments, including:

• Orthopedics
• Pediatrics
• Pain Management
• Rehabilitation Medicine
• Sports Medicine
• Chinese Medicine
• Physiotherapy
• Urology
• Burn and Plastic Surgery

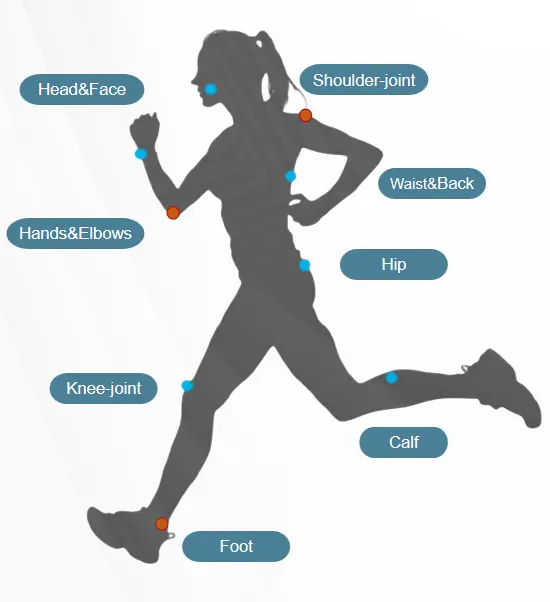

Ideal for treating conditions such as:

• Shoulder Periarthritis
• Tennis Elbow
• Plantar Fasciitis

Why Choose Us

• Innovative Technology: Our machine is equipped with advanced shockwave technology and customizable settings for superior treatment efficacy.
• High Reliability: With multiple patents and certifications, our products are trusted for their quality and performance.
• Comprehensive Support: We offer timely after-sales service, training, and maintenance to ensure your equipment operates at peak performance.
• Proven Track Record: Recognized as a "national high-tech enterprise," our reputation speaks to our commitment to excellence.

Certifications

• Utility Model and Appearance Patents: 11
• Software Works: 8
• Registered Trademarks: 7
• Medical Device Certifications: 3
• Medical Device Filing and Certification: 2

• Obtained ISO13485,ISO9001.

FAQ

Q: What conditions can this machine treat?
A: It is effective for conditions such as shoulder periarthritis, tennis elbow, and plantar fasciitis.

Q: How often should treatments be administered?
A: Typically, 2-5 treatments are recommended, with sessions spaced 2-4 days apart.

Q: Is training provided for using the machine?
A: Yes, we offer comprehensive training and support for effective operation and maintenance.

Q: What is the warranty period for the machine?
A: Warranty details can be discussed upon purchase. Please contact us for more information.
